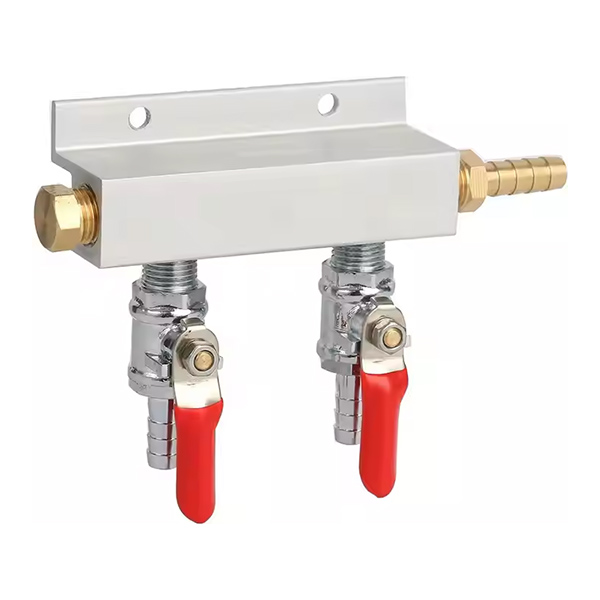

2 outlets Co2 manifold

Description
Inquiry

Item Name: 2 outlets Co2 manifold

Material: Brass, Aluminum, Stainless Steel

Process Technic: Forging

Inlet Connector: Φ8mm (customized)

Outlet Connector: Φ8mm (customized)

Applicable Gas: Co2, N2

Packaging: Inner Box, Master Carton

Splits the CO2 line into multiple outlets. Each outlet has its own ball valve with built-in check valve to prevent gas pressure from equalizing from one keg to another.

Made of aluminum, brass and stainless steel. Long durability. Comes with screw holes so that it can be mounted on a wall.

8 mm hose nipples. The ball valves have 1/4" threads, and can be replaced with other types of connections. Note that the ball valve must then be removed.

Please note that due to the check valve mechanism, there is approx. 0.1 bar (2 psi) pressure drop across the ball valves in these manifolds. You must therefore set the pressure on the regulator approx. 0.1 bar (2 psi) higher than the desired pressure to the keg.
